John Deere Backhoe Loaders
L-Series Backhoes
Why run two machines when one will do? Whether you’re loading trucks, busting up blacktop, placing pipe, digging trenches, or moving materials, an L-Series Backhoe is more than up to the task. Building upon our highly productive K-Series Backhoes, the L-Series features additional backhoe lift capability and pressure-compensated load-sensing (PCLS) hydraulics (on the 310SL HL, 410L, and 710L), for superb multifunction performance. The result: our most versatile backhoes ever.
310L
14–15-ft. Dig Depth
Choose from a variety of control options.
- Net Power: 69 kW (93 hp) @ 2,244 rpm
- Max. Digging Depth: 4.27 m (14 ft. 0 in.)
- Loader Breakout Force: 41.6 kN (9,353 lb.)
- Loader Lifting Capacity: 3099 kg (6,833 lb.)

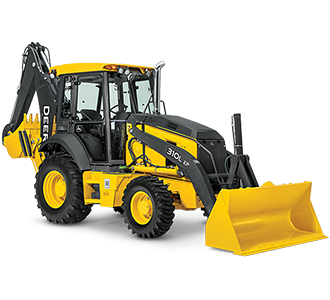

310L EP
14–15-ft. Dig Depth
Choose from a variety of control options.
- Net Power: 52 kW (70 hp) @ 1,900 rpm
- Max. Digging Depth: 4.27 m (14 ft. 0 in.)
- Loader Breakout Force: 41.6 kN (9,353 lb.)
- Loader Lifting Capacity: 3099 kg (6,833 lb.)
310SL
14–15-ft. Dig Depth
Choose from a variety of control options.
- Net Power: 74 kW (99 hp) @ 2,244 rpm
- Max. Digging Depth: 4.34 m (14 ft. 3 in.)
- Loader Breakout Force: 49.1 kN (11,045 lb.)
- Loader Lifting Capacity: 3462 kg (7,632 lb.)

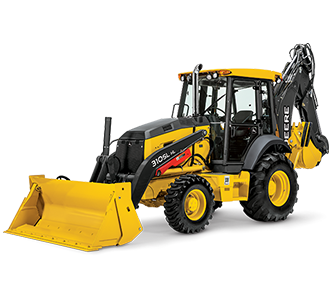

310SL HL
14–15-ft. Dig Depth
Choose from a variety of control options.
- Net Power: 82 kW (110 hp) @ 2,244 rpm
- Max. Digging Depth: 4.51–5.52-m (14 ft. 10 in.–18 ft. 1 in.)
- Loader Breakout Force: 49.4 kN (11,106 lb.)
- Loader Lifting Capacity: 3397 kg (7,489 lb.)

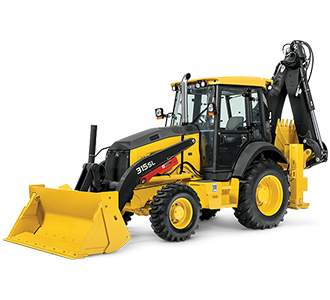

315SL
14–15-ft. Dig Depth
Choose from a variety of control options.
- Net Power: 74 kW (99 hp) @ 2,244 rpm
- Max. Digging Depth: 4.17 m (13 ft. 8 in.)
- Loader Breakout Force: 48.3 kN (10,866 lb.)
- Loader Lifting Capacity: 3375 kg (7,440 lb.)

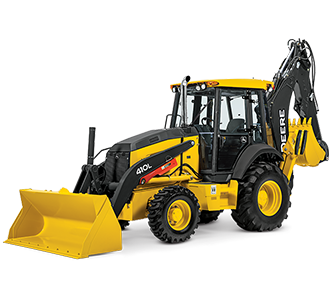

410L
15-ft. and Over Dig Depth
Choose from a variety of machine configurations.
- Net Power: 84 kW (113 hp) @ 2,244 rpm
- Max. Digging Depth: 4.83 m (15 ft. 10 in.)
- Loader Breakout Force: 47.3 kN (10,634 lb.)
- Loader Lifting Capacity: 3243 kg (7,149 lb.)

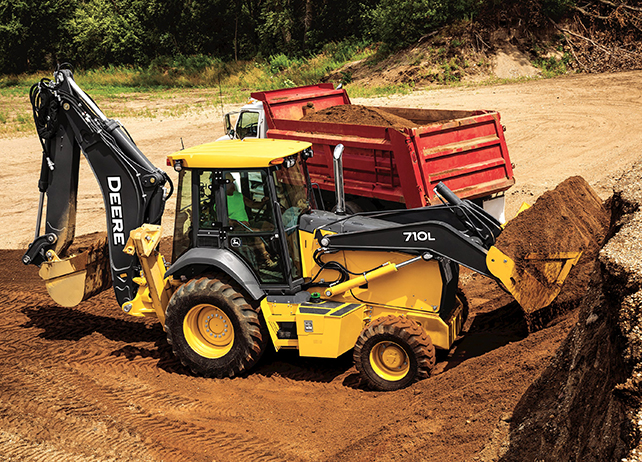

710L
15-ft. and Over Dig Depth
Choose from a variety of machine configurations.
- Net Power: 110 kW (148 hp) @ 2,244 rpm
- Digging Depth: 5.26 m (17 ft. 3 in.)
- Loader Breakout Force: 73.6 kN (16,539 lb.)
- Loader Lifting Capacity: 4475 kg (9,866 lb.)
